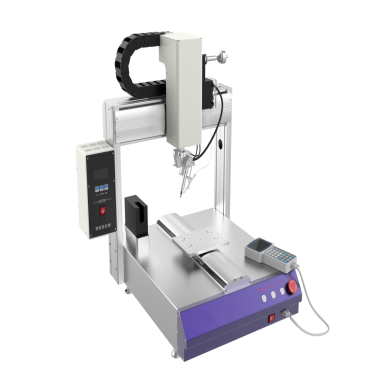

400 servo drive automatic soldering machine

model：T-400H

Rate power：1000-4000w

Temperature rante：0-500℃

Program capacity：999 group, 4000pints/group

Control system：teaching pendent

Motion system：Servomotor / synchronous belt

Movement：Point to point / continual point

Communication：RS232

Dimension：593*701*798mm

Power supply：AC220V/50-60Hz

Working environment：Temp 10～40℃/ humidity 20～90% no condensation

Features：

1.Use RTC temperature control way, enable solder from low temperature, guarantee the

PCB or components without burn by over heat

2.Make solder iron tip longer live time by use low temperature soldering

3.RTC+TM system guarantee temperature stable, make solder quality good conditions,

avoid damage from over heat or cold joint of fake soldering

4. 6s rise up to 300℃ from room temperature, less heat sink, takes 0.1s to make

temperature compensate within10℃ .

5. Micron CPU control high accuracy temperature control, pulse heating fast and precise

6. Live display temperature diagram during soldering，4 steps rise up temperature,

available to set up rise up speed and temperature as will, 20 types program available，

good for various soldering demand

7. Can customize different size or shape of solder iron tips according to products features

Advantage：

1. N2 Optional together with fixture

2. Self-patent of iron tip cleaning units, avoid air blow way cold the iron tip or not enough

cleaning brings dirty or fail soldering

3.Strong alloy iron tip, 5 times of live time than normal one from market

4.New design with special clap, easy operate make sure iron tip always in same position

after switch new

5.More than 500 types solder iron tip experience , available customize according to your

demand

6.Simple teaching pendant easy set up and operate, don`t need too much training or

special engineer skill, normally 3 hours done all training

7.Optional CCD camera for position adjustment
